What It Does

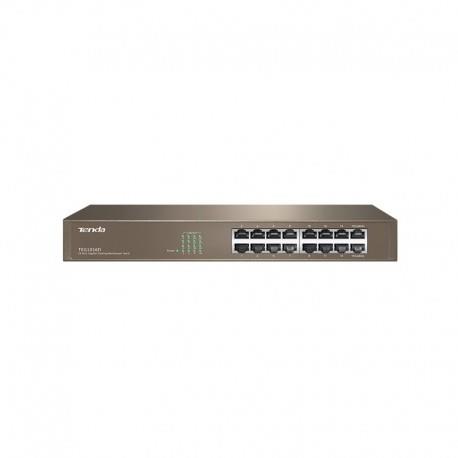

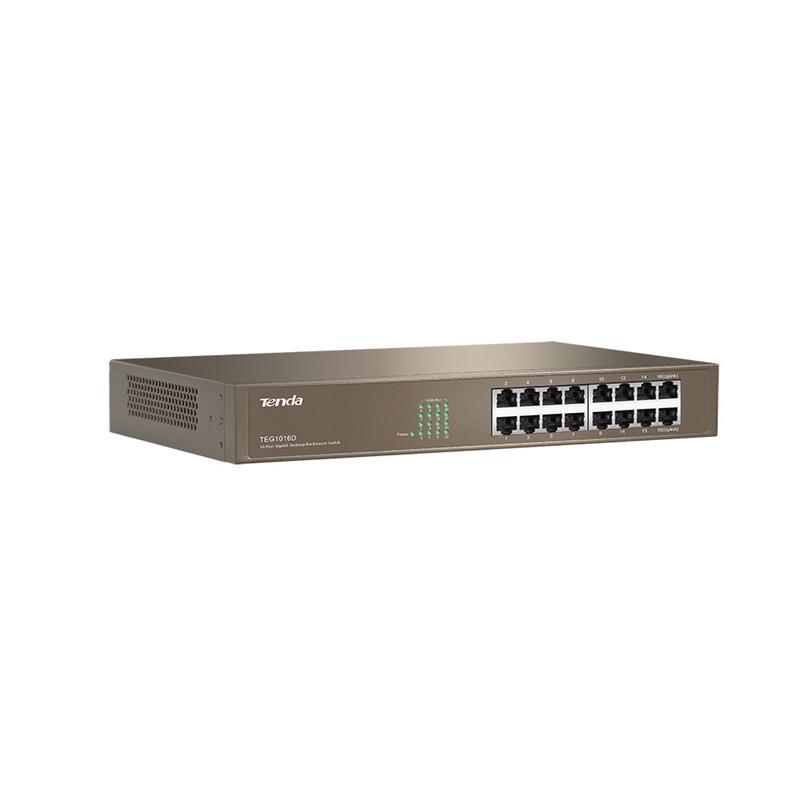

TEG1016D, Tenda 16-Port Gigbit Rackmount Switch, adopts the most advanced Broadcom StrataConnect-series chip of high integrity, has 16 10/100/1000M Ethernet ports and is compatible with IEEE 802.3az standard. Special high reliability design supports for protecting the power adapter and ports from inducive lightning up to 6KV voltage; all provides an economical solution for network accessing layer with small-middle sized enterpries, schools and hotels, etc.
Main Features
● Compatible with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3x
● and IEEE802.3ab 1000Base-T standards.
● Allows and assures packets to be forwarded by all ports at full wire speed.
● 16 10/100M/1000M auto-negotiated RJ45 ports.
● Support MDI/MDIX auto-negotiation.
● Support storage and forwarding.
● With inducive lightening protection towards the power adapter and ports, and
● enterprise-level design of 1U(thickness)-steel casing and 19-inch rack; With
● the help of hangers, it can be installed on the standard rack.
● Support 6000V lightning protection for power supply
● Support 4000V lightning protection for RJ45 port
● Support loop detection and prevention
● Support standard 13/19 inch rack-mountable
● Support Plug and Play，without any configuration
Advanced Chip Design
With the most progressive Broadcom StrataConnect-series integrated Silicon chip based on ARM-high performance, Tenda New 16-Port Unmanaged Gigabit Switch can be extended according to applications, and achieve high efficiency of advanced Gigabit applications
Inductive Lightning Protection
Integrating professional circuits, Tenda New 16-Port Unmanaged Gigabit Switch can protect the power supply and ports from inducive lightning (6KV in Common Mode Protection).
Adopts advanced loop algorithm to prevent loop effectively.
Equipped with radiators on its front&back panel, and high quality components, Tenda New 24-Port Unmanaged Gigabit Switch can maintain high reliability even between extreme temperatures.
Quiet and Energy-Saving
With its advanced energy-saving design, such as outburst and batch control strategy, and LED brightness control, Tenda New 16-Port Unmanaged Gigabit Switch reduces power consumption, which has exceeded the EEE setting value.
Stable connection for 7*24
16*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
Excellent lightning protection of ports
Professional integrated lightning protection circuit enables all the 16 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.
Professional lightning protection for power supply
The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.
